Best Price Lifetime Warranty Alluvial Gold Washing Plant with belt type

FOB Reference Price:Get Latest Price
US $17,999-19,999 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Gravity Separator
Production Capacity:
98%
Place of Origin:
Shandong, China (Mainland)
Brand Name:
REALMINING
Model Number:
HPC-10
Voltage:
380/480V
Power(W):
2.2Kw
Dimension(L*W*H):
2.7*7.3*Adjustable support legs
Weight:
2450kg
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
No overseas service provided
Product name:
vibratory washing plant
Application:
Alluvial Gold Washing
Keywords:
vibratory washing plant
Installation:
Technical Guidance
Usage:
Gold Separating
Capacity:
1-20tons
Feeding size:
0-30mm
Name:
Gold washing plant
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude packing in 20' container or in a 40" container with an HPC-30
Port
Qingdao
Lead Time :
4-6 weeks after receiving deposit
Product Description
Applications

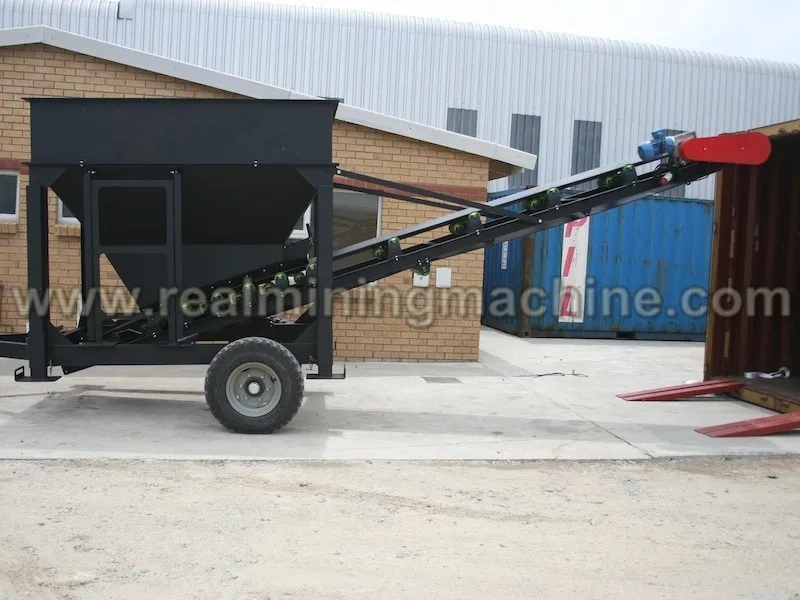

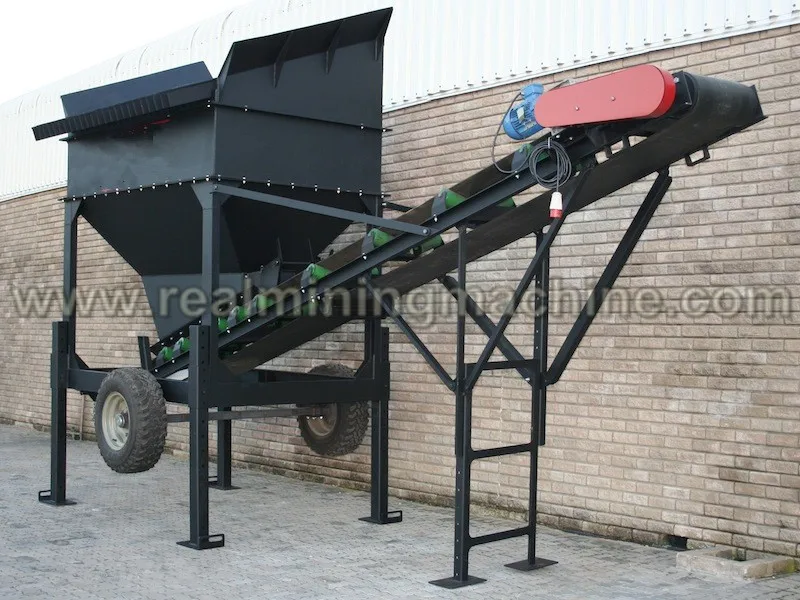

The FC-30 is a Feed Conveyor with Hopper and Grizzly,designed for use with the HPC-30 with material that is not sticky and has low clay content. It can be fed with an excavator, backhoe or small loader.
This equipment has a simple and solid design,with adjustable speed that matches the requirements of the HPC-30 when processing fine or coarse material
Capacity
- Adjustable speed to match HPC-30 feed requirements whether processing fine or coarse material.
- Feed Rate is fully controllable by a combination of Variable Speed Drive and Sprocket selection to adjust conveyor speed and aperture setting of two different radial control gates.
- Hopper of 6mm plate steel with approximately 6 ton capacity
- 6'*8' top opening with 75mm spaced Grizzly Bars
Feed Material
- Feed material sizing up to 300mm - oversize +75mm  material will be scalped off by Grizzly Bars
- Can be fed manually from a stock-pile or with a small excavator
Conveyor
- Winged tail pulley
- Full length skirt boards
- 2 ply - 220 PIW conveyor belting with 3/16" * 1/16" covers
- 18" * 18" Conveyor
Drive System
- 2.2kW / 3 HP electric motor with reduction gearbox
- Electrical Supply must be 3-Phase 380-480V and 50/60Hz.(FC-30 can be special-ordered to accept Single Phase power - needs to be specified on order)
Dimensions
Width 2.0m
Length 7.31m
Height Adjustable support legs to accommodate terrain
Weight : 2450 kg
Trailer
- Mobile single axle design
Manning
1 equipment operator required.
Note: for safety reasons, it is always best to have at least 2 people present when operating machinery.
Products Show
Our Service

Pre-Sales Service

1)Our Company signs a long-time after-sale service agreement with customers.
2)We provide rational and practical design according to customers' request.
3)We send engineers to assemble and debug the machine within the time in the contract.

After-Sales Service

4)Within warranty period,we provide free repair if quality problems emerge.
5)We provide free training of operation and maintainance for customers.
6)We supply high quality accessories at a low price.
7)We make an excellent filing of customers for long-term following-up service.

Our Company

Qingzhou Real Mining Equipment Science Technology Co.,Ltd is a professional manufacturing company in the fields of mechanical design ,production&installation.Our company is located in Masong Village, Huanglou Street Ofiice, Qingzhou, Weifang ,Shandong, China(Mainland).Company was founded in 1994, more than 20 years producing and marketing experience to ensure our company provides rational and practical design.

We warmly welcome all friends to visit our company and establish business with us.

Packing & Delivery


Main products

Our main products:
Full set gold mining machinery
--Gold washing machine(vibrating screen,trommel,clay scrubber,dry gold washer)
--Gold recovery machine(gold concentrator,sluice box,shaking table,amalgamator,furnace)
Mini gold mining dredge(jet suction type in water)
Mobile gold machine (drum type,shaking type,belt type)
Magnetic separator
Small exploration & gold separating machine
Gold pan
