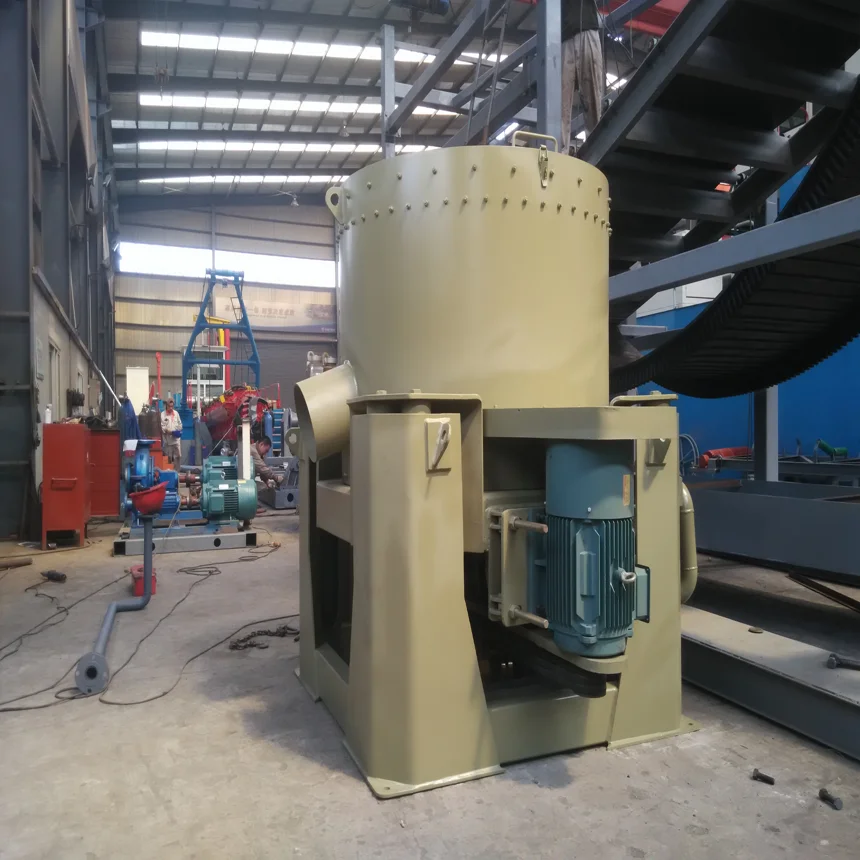

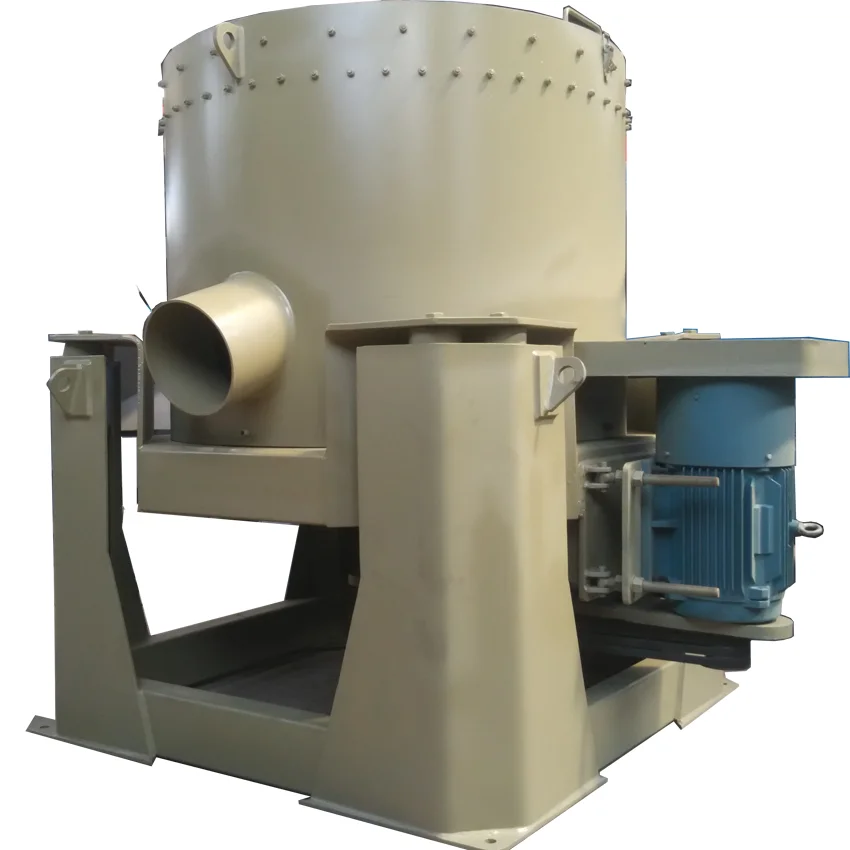

Knelson Centrifuge concentrator separator

FOB Reference Price:Get Latest Price
US $2,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Gravity Separator
Production Capacity:
97%
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Real mining
Model Number:
KN-19/30/60/80/100
Voltage:
220V/380V
Power(W):
0.75-15kw
Dimension(L*W*H):
Diffrent Model
Weight:
0.3t-1.8t
Certification:
ISO9001:2008
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Customers' Request
Capacity:
0.25-70T/h
Application:
Mining
Material:
Steel
Name:
Knelson Centriguge concentrator
Supply Ability
Supply Ability:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
We will use suit for sea transport packing .
Port
Qingdao
Lead Time :
Within 15 days after receive the paymenwt
Product Description



Water jacket centrifuge is also called Nelson centrifuge, which is fit for the selecting and recovery of sand gold and rock gold. It’s an ideal equipment for inland, river sand gold and rock gold selecting to replace amalgamating plate. Now our company have five models. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0. 074mm, the recovery for the natural gold is expected up to 98%. For those natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours for Rock gold, and 4-8 hours for Sand gold.The upgrade ratio is up to 1,000 times.



.png



Detail



Model

Kn19

Kn30

Kn60

Kn80

Kn100

Capacity

(t/h)

0.25-0.3

3-5

15-20

50-70

80-100

Feeding size (mm)

0-3

0-4

0-6

0-6

0-6

Feeding Density (%)

0-50%

0-50%

0-50%

0-50%

0-50%

Slurry water Required

(t/h)

1.5-2

4-6

10-15

17-25

40-60

Concentrate weight

(kg)

2

10

40

60

80

Motor Power (kw)

0.75

2.2

7.5

15

18.5

Dimensions (m)

0.8*0.75*0.8

1.2*1.0*1.1

1.4*1.6*1.6

2.2*1.7*1.9

2.5*2.0*2.4

Weight (T)

0.3

0.5

1.5

1.8

2.0

 Structure






Working principle

The motor drive the concentrate cone rotation in high speed via belt. Feed slurry is then introduced through the stationary feed tube and into the concentrate cone. When the slurry reaches the bottom of the cone it is forced outward and up the cone wall under the influence of centrifugal force. The heavy gold will be stay in layers, and light material will be discharged via outlet. After the machine stop, selected gold sand will be discharged via bottom outlet.
